Variant

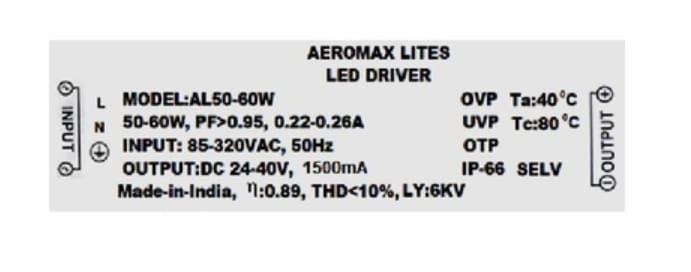

LED driver set suitable for COB type LED street light fixture/ 60W LED well Glass fitting
Description
Designed to provide stable, efficient power for high-lumen COB LEDs and well glass l fitting. It ensures optimal brightness, long life, and protection against voltage fluctuations, ideal for modern street and outdoor lighting applications.
Key Features
- High efficiency LED driver
- Wide input voltage range (85-320VAC)
- Power output between 50-60W
- Maintains power factor above 0.95
- Low total harmonic distortion (<10%)
- Output voltage range DC 24-40V
- Constant output current of 1500mA
- Built-in surge protection (6KV)
- Over voltage and temperature protection
- Ingress protection rating IP-66 for outdoor use
Technical Specifications
SpecificationDetail
SpecificationDetail
SpecificationDetail
Power Output
50-60W
Power Factor
>0.95
Input Current
0.22-0.26A
Input Voltage
85-320VAC
Input Frequency
50Hz
Output Voltage
DC 24-40V
Output Current
1500mA
Efficiency
0.89
THD
<10%
Surge Protection
6KV
Ambient Temperature
40°C
Case Temperature
80°C
Over Temperature and voltage Protection
Yes
Ingress Protection
IP-66
Safety Extra Low Voltage
Yes
Custom Specification
YES
Power Output
50-60W
Power Factor
>0.95
Input Current
0.22-0.26A
Input Voltage
85-320VAC
Input Frequency
50Hz
Output Voltage
DC 24-40V
Output Current
1500mA
Efficiency
0.89
THD
<10%
Surge Protection
6KV
Ambient Temperature
40°C
Case Temperature
80°C
Over Temperature and voltage Protection
Yes
Ingress Protection
IP-66
Safety Extra Low Voltage
Yes
Custom Specification
YES
For more information about related products / other variants or for custom requirements, Contact Us.
